eSMART-MDAS
Facility data collection equipment
-
What is eSMART-MDAS?
- Machine Data Access System is a device that connects contacts to PLCs, sensors, switches, gauges, etc. of various equipment to collect equipment status information and transmit it wirelessly.

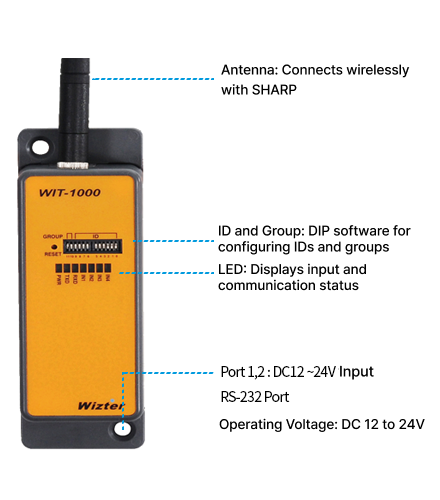

WIT-1000C
| Designation | Production information collection transmitter |
|---|---|
| Model name | WIT-1000 |
| CPU | PIC Series |
| ROM | 128k byte Flash |
| RAM | 8k byte |
| Communication | 24GHz wireless communication (Zigbee) RS-232 |
| I/O | 2Port DC12~24V input |
| Dongjak Power | DC12~24V |
| Size | 125mm X 40mm X 28mm |

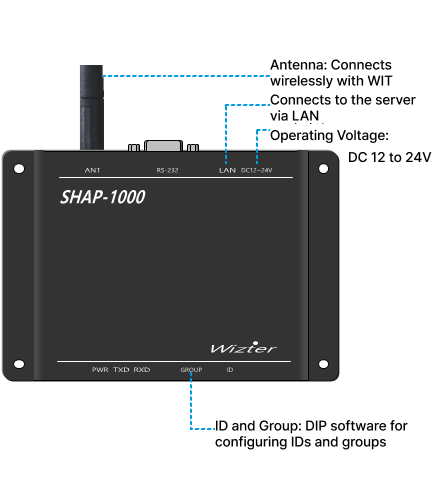

SHAP-1000
| Designation | Wireless data repeater |
|---|---|
| Model name | SHAP-1000 |
| CPU | 64180 Compatible |
| ROM | 128k byte Flash |
| RAM | 256k byte Flash |
| Network | Ether-Net LAN 1port |
| Wireless Communication | 24GHz wireless communication (Zigbee) |
| External Communications | RS-232 1port |
| Size | 110mm X 120mm X 30mm |
| Dongjak Power | DC12~24V |
eSMART-DAS-Facility Data Collection Equipment
-
eSMART-MDAS equipment contact connection example
-
